- SeaLux Marin STRAIGHT 316 SS Trim Cover Grey Poly Thru-Hull/ STALON Scupper Drain with RUBBER FLAPPER for Hose dia. 2", Flange dia. 3-1/4" for Bayliner Boat (Southco, part number M7-10-9005254)
- Come with Rubber Flapper flap automatically closes to prevent incoming backwash. Highly Mirror Polish 316 SS Trim Cover .
- A barbed end accepts multiple hose clamps. Scupper molded from polypropylene with fiber glass for strength.
- Not recommended for use below the waterline. Easy Installation. Commonly use on Bayliner Boat or SeaRay Boat
- For Max. Hull Thickness 1-3/4"; hose dia. 1-1/2", Flange dia. 3-1/4", require drill hole 2-1/4" for installation, Insert clearance length: 5"
Thru hull stalon with scupper manufactured by Southco, part number M7-10-9005254.
Commonly used by Bayliner Boats, part number 174599.
Light-weight design with a stainless steel appearance
tested to ASTM D638 and ASTM D790
Features a one-way PVC check value
Constructed from Nylon 66 with 30% fiber glass fill Scupper body, in Grey Color
Mirror Polish 316 stainless steel Flange
Rubber Flapper to prevent water backup
Has an approximate 3 1/4" OD flange,
an approximate 1 3/4" max hull thickness
cut out hole dia.: 2-1/4"
Fit 1-1/2" OD barbed hose connection.
Hardware and instruction / installation manual not included.

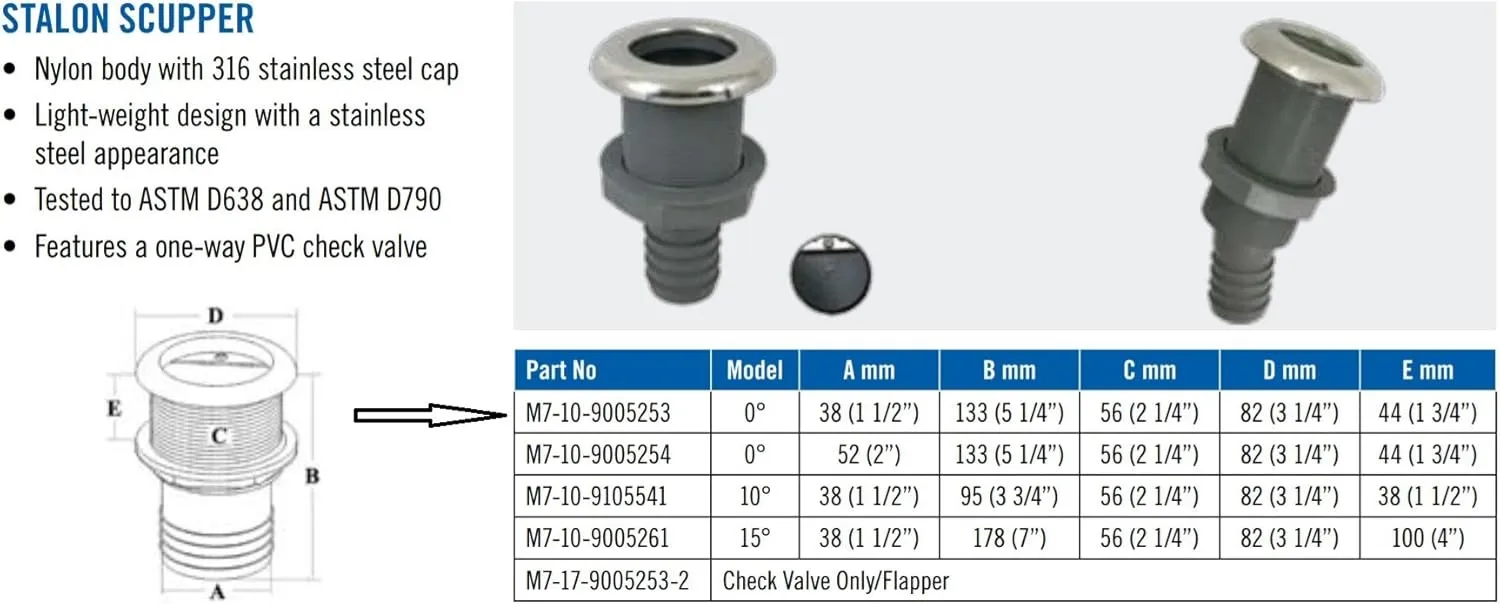

Specifications:
Manufacturer: Southco
Part#: M7-10-9005254
Model#: 9005254
Vendor: Bayliner Boats
SeaLux Part#: SL82286047
Colors: Green; Silver
Material: Nylon body and 316 Stainless Steel Cap
Hose Connection: 1-1/2" OD Barbed
Max Hull Thickness: 1 3/4"
Overall Dimensions: 3 1/4" OD x 5-1/8" H
Sold as seen in pictures. Customers please note every computer shows colors differently. All measurements are approximate. Sold as seen in pictures. Customers please note every computer shows colors differently. All measurements are approximate.
